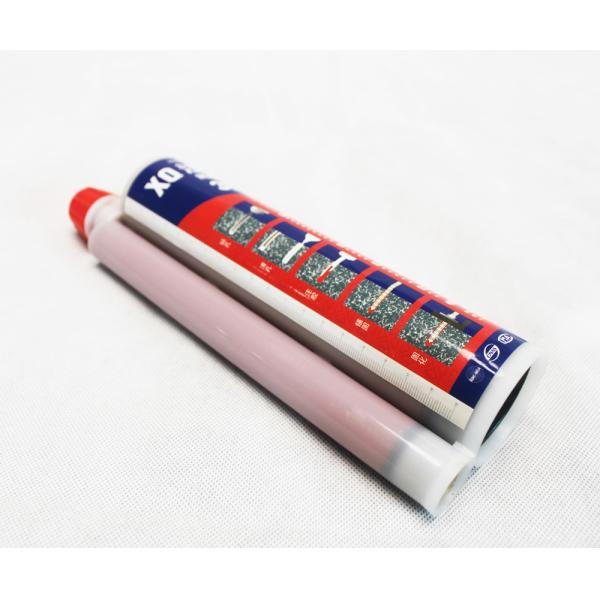

390ml 3:1 ETA Equivalent Quality Bonded Anchor For Building Rehabilitation
Chemical anchor adhesive, epoxy injection mortar, Chemical fixing glue,
Chemical anchoring system used for anchoring and rebar connections in concrete.
Item #: FixingChor139
Capacity: 390ml
Materials: Epoxy
Mixing Ratio: 3:1
Product Description:
390ml 3:1 ETA Equivalent Quality Bonded Anchor For Building Rehabilitation is
Solvent-free, epoxy resin based, two part high performance anchoring adhesive.
A two component chemical anchoring injection system.
A formulation derived from a special resin blend, with high bond strength,
developed principally to anchor threaded rods into concrete. Used widely for
installations in extremely cold temperature situations.
PRODUCT FEATURES
-High grip force, high adhesive force.
-Longer working time.
-Designed for use with threaded rod and reinforcing bar hardware elements.
-Special application to diamond drilled holes and large bore diameter.
-The product ingredient is odorless and non-toxic.
-Orange color can be easily detected or monitored.
-Wide temperature range(5°C~+40°c)
-Styrene free.
Application Range
For structural work:
Rebar / steel reinforcement anchoring in new and refurbishment works.
Threaded rods
Bolts and special fastening systems
Mechanical and electrical services installation
Anchoring of supports for ducting and equipment.
Metal Work, carpentry
Fixing of handrails, balustrades and supports
Fixing of railings
Fixing of window and door frames
Fixing of the following substrates:
Concrete
Hard natural and reconstituted stone
Solid rock and masonry
Steel
Wood
Technical Data
Anchoring Adhesive used with thread rod
| Thread Rod Dia | C30 Concrete | M10 | M12 | M16 | M20 | M24 |
| Drilling Dia.(mm) | | 12 | 14 | 18 | 24 | 28 |
| Depth (mm) | | 90 | 110 | 145 | 180 | 220 |
| Damage Pulling force KN | Grade 5.8 Steel | 29 | 42.2 | 78.5 | 122.5 | 254.5 |
| Grade 8.8 Steel / A4 SS | 36.8 | 52.9 | 94.1 | 147.0 | 211.7 |
| Damage Cutting force KN | Grade 5.8 Steel | 17.4 | 25.3 | 47.1 | 73.5 | 105.9 |
| Grade 8.8 Steel | `27.8 | 40.5 | 75.3 | 117.6 | 169.4 |
| A4 SS | 24.4 | 35.4 | 65.9 | 102.9 | 105.9 |
| Designed Pulling force KN | | 12.0 | 17.02 | 30.6 | 52.4 | 75.2 |
| Designed Cutting Force KN | Grade 5.8 Steel | 12.2 | 17.6 | 32.9 | 51.5 | 74.1 |
| Grade 8.8 Steel | 18.6 | 27.0 | 50.2 | 78.4 | 113.0 |
| A4 SS | 13.0 | 19.0 | 35.3 | 55.2 | 56.9 |
| Holes for each | | 54 | 25 | 8 | 5 | 3 |
Anchoring Loading Capacity of rebar to C30 concrete (designed value KN)
| Rebar d(mm) | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 |
| Hole D(mm) | 14 | 16 | 18 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 |
| Bar planting depth (mm) | 100 | 19.8 | | | | | | | | | | |
| 120 | 23.8 | 27.6 | | | | | | | | | |
| 140 | 27.7 | 32.2 | 36.3 | | | | | | | | |
| 160 | 31.7 | 36.8 | 41.5 | 45.8 | | | | | | | |
| 180 | | 41.4 | 46.6 | 51.6 | 55 | | | | | | |
| 200 | | 46.0 | 51.8 | 57.3 | 61.1 | 62.8 | | | | | |
| 220 | | | 57.0 | 63.1 | 67.2 | 69.1 | 71.5 | | | | |
| 240 | | | 62.2 | 68.9 | 73.3 | 75.4 | 78 | 79.2 | | | |
| 260 | | | | 74.6 | 79.3 | 81.7 | 84.5 | 85.8 | 96.1 | | |
| 280 | | | | 80.4 | 85.4 | 88.0 | 91.0 | 92.4 | 102.9 | 107.4 | |
| 300 | | | | | 91.5 | 94.2 | 97.5 | 99 | 109.8 | 114.6 | 115.8 |
| 320 | | | | | 97.6 | 100.5 | 103.9 | 105.6 | 116.6 | 121.8 | 123 |
| 340 | | | | | 103.7 | 106.8 | 110.4 | 112.2 | 123.5 | 128.9 | 130 |
| 360 | | | | | | 113.0 | 117.0 | 118.8 | 130.4 | 136.1 | 137.5 |
| 380 | | | | | | 119.3 | 123.5 | 125.3 | 137.2 | 143.3 | 144.8 |
| 400 | | | | | | 125.6 | 130 | 131.9 | 144.1 | 150.4 | 152 |
| 420 | | | | | | | 136.5 | 138.5 | 150.9 | 157.6 | 159.2 |
| 440 | | | | | | | 143 | 145.1 | 157.8 | 164.7 | 166.5 |
| 480 | | | | | | | 149.5 | 151.7 | 164.7 | 171.9 | 173.7 |
| 500 | | | | | | | 156 | 1583 | 171.5 | 179.1 | 181 |
| 550 | | | | | | | | 164.9 | 188.7 | 197 | 199.1 |
| 600 | | | | | | | | 181.4 | 205.8 | 214.8 | 217.1 |
| 650 | | | | | | | | 197.9 | 223 | 232.7 | 235.2 |
| 700 | | | | | | | | | 240.1 | 250.6 | 253.2 |
| 750 | | | | | | | | | 257.3 | 268.5 | 271.5 |
| 800 | | | | | | | | | | 286.4 | 289.6 |
| 850 | | | | | | | | | | | 307.7 |
| anchoring length (mm) | 147 | 149 | 178 | 210 | 250 | 300 | 351 | 446 | 538 | 592 | 666 |
| steel yield (mm) | 23.6 | 33.9 | 46.2 | 60.3 | 76.3 | 94.2 | 114 | 147.2 | 184.6 | 212.1 | 241.2 |
Our main product series:
-- Chemical Anchor series
Pure Epoxy Adhesive 360ml (5:1) 390ml(3:1) 585ml (3:1)
-- Steel bonding reinforcement system
XQ-JGN structural epoxy adhesive
XQ-GZ Grouting epoxy adhesive
XQ-FB edge sealing adhesive
-- Concrete repair system
XQ-GF crack grouting adhesive
XQ-FF crack sealing adhesive
-- Carbon fiber reinforcement system,
XQ-XW carbon fiber epoxy adhesive
XQ-XB concrete surface leveling epoxy adhesive
XQ-CFC carbon fiber fabric 12K unidirectional 200gsm-600gsm
